• "Emergency scalability"

    A simple device, a simple production but could show a fundamental information to evaluate the health state for prevention purpose with the oxygen % in blood, oximetry.

  • Simple design and standard parts

    To be scalable and easy to build every single parts are common and available in standard channels for industry and makers !!

  • Fast and essential

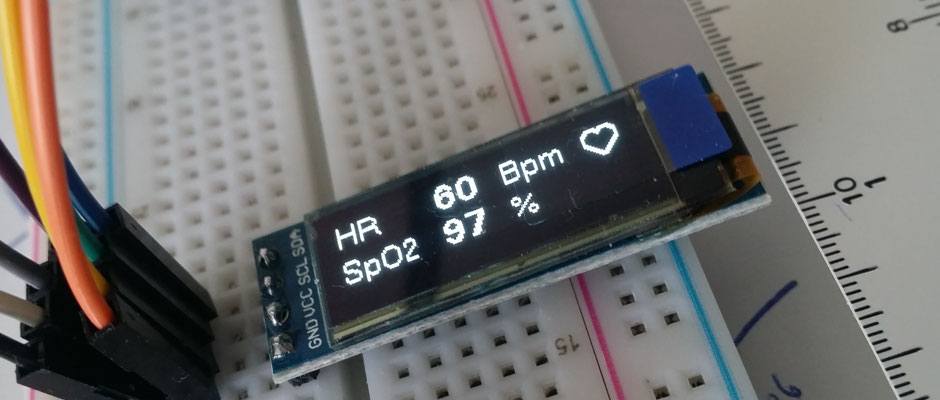

    To read the basic data and the main infos, a simple display clear and with a huge contrast.

  • "Advantages of 3d printing"

    An easy way to make a project easy and achievable in all the world: 3d printing for the case and for finger sensor enclosure...

  • ARDUINO make it easy

    Worldwide common projects and useful libraries: thanks to Arduino this project could be made in all the World and implemented, Improved in a short time.

The difference between invention and innovation is that you execute. Dean Hovey

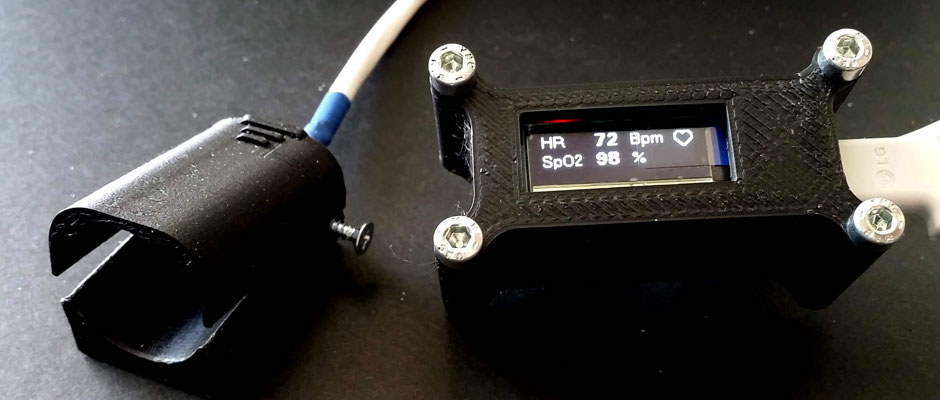

PULSE OXIMETER FOR EMERGENCY USE DURING CORONAVIRUS DISEASE (COVID‐19) PANDEMIC

This simple project want help people and institution in this Emergency. The difficult reperibility of fundamental device that in standard situation are the base in all the Hospitals is a huge problem, as also the shortage of personal protection devices..

Open source as the base for fast replication and diffusion

The "base pack" of this first release are intended to produce a functional device with all the parts:

1
The hardware

A short list with all necessary parts, common and cheap hardware with a huge potential: Arduino Nano (next micro and others), MAX30100 pulse-oximeter sensor, OLED screen 128x32, "emergency board".

2
3d printable enclosures

Thanks to the Bergamo based bicycle company "3t Cycling", a 3d printable case was developed to group all parts together. www.3t.bike

3

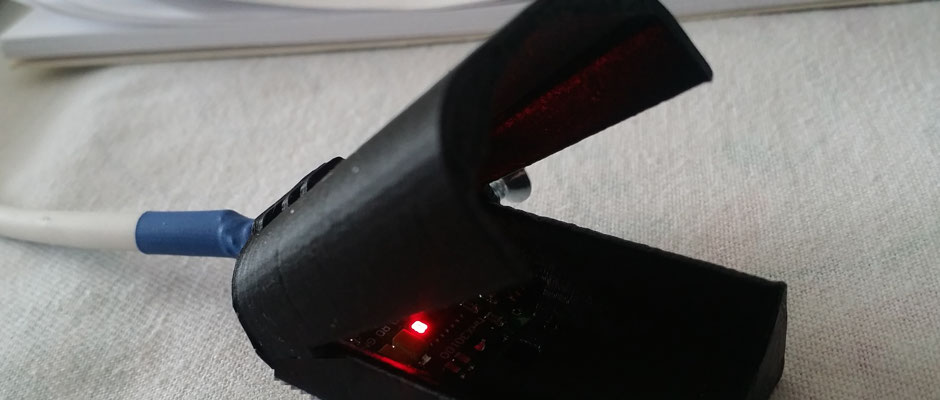

3d printable finger-clip

An open-source and already available "finger sensor enclosure" are the fast way to share the project. FInd it in thingiverse repository. Is a "Pulse Oximeter Clip" to use with MAX30100 Board designed by Peter_Smith.

4

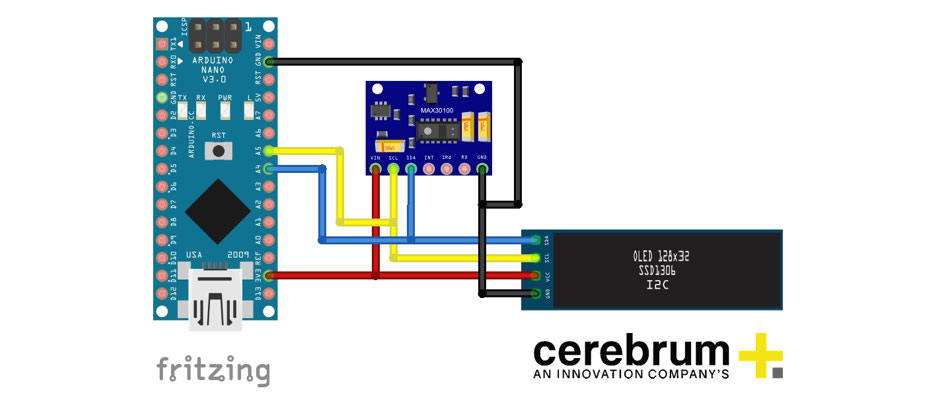

Simple emergency board

To electrically connect and to support all the parts a simple "baseboard" is build with a prototype circuit board (next level will be a printable circuit). In this way connect Arduino board, the sensor and the Oled screen is fast.

5

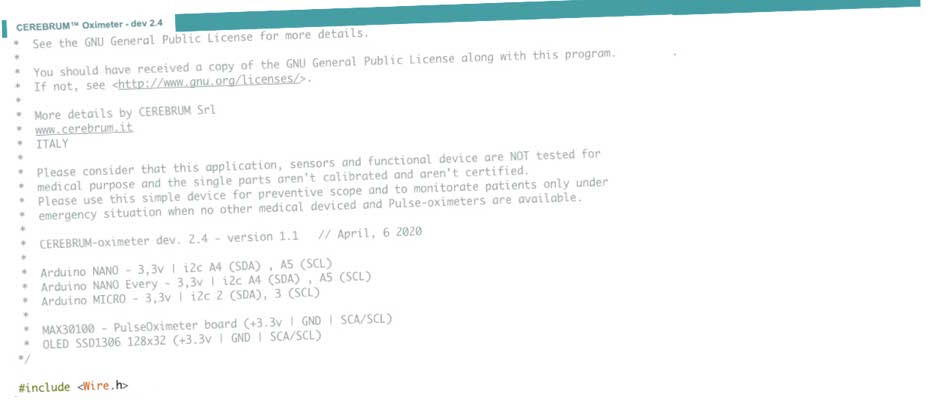

The code

In this preliminary release a base configuration is build to have clear view of the heart rate and of the oximetry, with real time monitoring. The base configuration and the paramers was set for a general use, some simple change could be necessary for specific situation.

6
The instructions

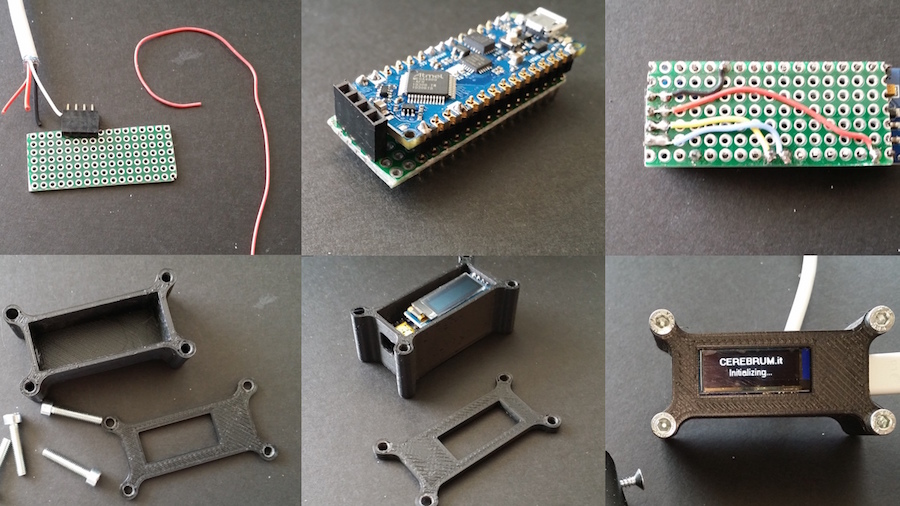

Simple Draws, a step by step instructions and base information for assembly and debug. The links for libraries download and the thingiverse repository. Nothing else is needed in this phase.

ALTERNATIVES LINKS & EXTERNAL PUBBLICATIONS


    • DOWNLOAD LINKS


    DISCLAIMER
    Please consider that this application, sensors and functional device are NOT tested for medical purpose and the single parts aren't calibrated and aren't certified. Please use this simple device for preventive scope and to monitorate patients only under emergency situation when no other medical deviced and Pulse-oximeters are available. Every use outside this scope will be at under own responsibility, every modification or changing will be under own responsibility.

    This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
    This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see https://www.gnu.org/licenses/licenses.en.html

    Copyright © 2020, CEREBRUM™ srl

    Downloading at least a single file or use any content or instruction referrable to this work mean to accept the disclaimer and accept the intent of this project, released under an Emergnecy situation of "Covid-19 diseases".

    LAST UPDATE: 22 of April, 2020
